GH1853–Graphite Packing Reinforced with Inconel Wire
2019-06-28
GH1851–Expanded Graphite Braided Packing
2019-06-28
GH1855–Inconel Mesh Jacketed Graphite Filament Packing
Hot water, high temperature and pressure steam, hydrogen gas, hydrocarbons, cryogenic liquids. etc. Petrochemical, power, chemical, mining industry.
- Graphite, Inconel wire mesh jacketed Graphite Filament
- Temperature (ºC) 650°C Steam
- Temperature (ºC) 450°C Oxidizing condition
- Temperature (ºC) -240°C Cryogenics
- Pressure (Bar) 450
- Velocity (m/s) 20
- PH0-14
- Size: 3×3mm–50×50mm

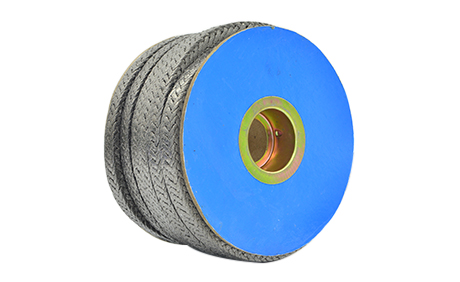

Inconel Mesh Jacketed Graphite Filament Packing
Size:3×3mm–50×50mm；Others can be produced according to client’s requirement
| Style GH1855 | Working Conditions |
| Temperature (ºC) | 650°C Steam
450°C Oxidizing condition -240°C Cryogenics |
| Pressure (Bar) | 450 |
| Velocity (m/s) | 20 |
| PH | 0~14 |
Composition:
graphite, Inconel wire mesh jacketed Graphite Filament
Application:
Hot water, high temperature and pressure steam, hydrogen gas, hydrocarbons, cryogenic liquids. etc. Petrochemical, power, chemical, mining industry.
Equipment:
valve
