Barium Sulfate Filled PTFE Gasket Sheet CILON 6018
- Color: Off-White
- Filler: Barium Sulfate
- Sheet Size: 1500*1500
- Gasket size: ASME B16.21 / EN 1514-1
- Thickness: 1.0mm 1.5mm 2.0mm 3.0mm
- PH: 0 ~ 14.
- Usage temperature: －100℃～﹢250℃

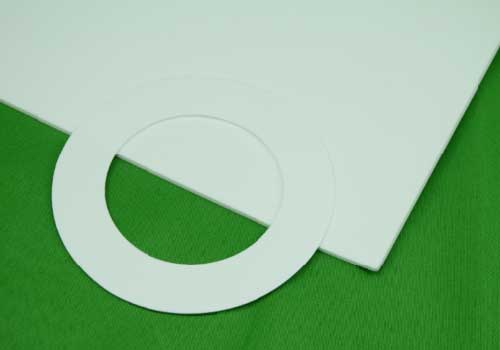

CILON 6018
Modified PTFE Sheet
Color: Off-White
Filler: Barium Sulfate
Summary:
Specialized in alkaline media.
For chemical and pharmaceutical industry seal gasket.
Strong caustics, moderate acids, chlorine, gases, water, steam, hydrocarbons, and cryogenics.
Supply standard:
Sheet Size: 1500*1500
Gasket size: ASME B16.21 / EN 1514-1
Thickness: 1.0mm 1.5mm 2.0mm 3.0mm
PH: 0 ~ 14.
Usage temperature: －100℃～﹢250℃
| Item | Standard | Data |
| Compressibility 350bar % | ASTM F36A-99 | ≥8 |
| Recovery 350bar % | ASTM F36A-99 | ≥30 |
| Tensile Mpa | ASTM 152-95 | ≥8 |
| Specific Gravity g/cm3 | ASTM D 792 | 2.8 |
| Seal Leakage Rate(cm3/s) | GB/T9129-2003 | < 1×10-3 |
| ASTM test reference to gasket thickness 2 mm;
DIN test reference to gasket thickness 1.5 mm. |
||
