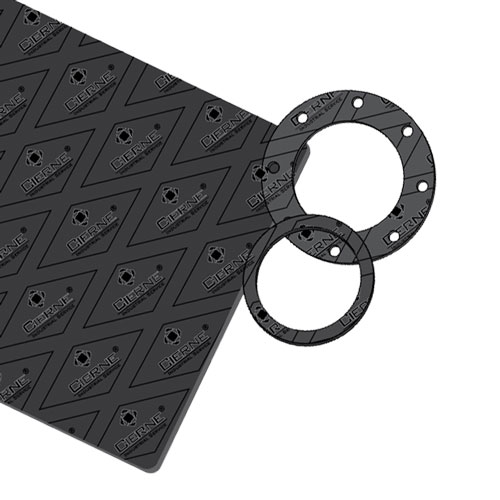

DP5060-Carbon Fiber
Description: Oil Resistance Asbestos-Free Gasket Sheet
Main material: Carbon fiber, organic fibers NBR rubber.
- Tensile strength(Mpa): ＞10
- Working temperature: 350 ℃. Top Temperature: 480℃
- Standard size (mm):1270*1270, 1270*3810, 1500*1500,1500*4500
- Thickness (mm):0.5/0.8/1.0/1.5/2.0/3.0/4.0/5.0
- Tolerance: Thickness: ±10%, length & width:±50mm
Description: Oil Resistance Asbestos-Free Gasket Sheet
Main material: Carbon fiber, organic fibers NBR rubber.
Standard size (mm):1270*1270, 1270*3810,
1500*1500, 1500*2000, 1500*4500
Thickness (mm): 0.5/0.8/1.0/1.5/2.0/3.0/4.0/5.0
Tolerance: Thickness: ±10%, length & width:±50mm
Technical data:
| Item | Unit | Value | |
| Density | g/cm3 | 1.65~1.75 | |
| Tensile strength | ASTMF-152 Mpa | 10 | |
| Compressibility | ASTMF-36 % | 7~12 | |
| Resilience | ASTMF-36 % | ≥40 | |
| Creep relaxation rate | N/mm² | ≤28 | |
| Leakage rate | ASTMF-37 cm3/s | 1.0×10-3 | |
| Oil resistance Thickness growth |
ASTM3# oil 150℃／5h | ≤10 | ≤10 |
| ASTM Fuel oil B 23℃／5h | ≤15 | ≤15 | |
| Temperature (Long-term working) | ℃ | 250~350 | |
| Top Temperature | 480 | ||
| Application：
Excellent oil-resistance and strong acid resistance. Covered any working condition except food and medicine touched media.. Advise pressure : ≤11Mpa |
|||
