GH1311–Arcylic Fiber Packing
The complete packing for tank, crucible and furnace door sealing applications.

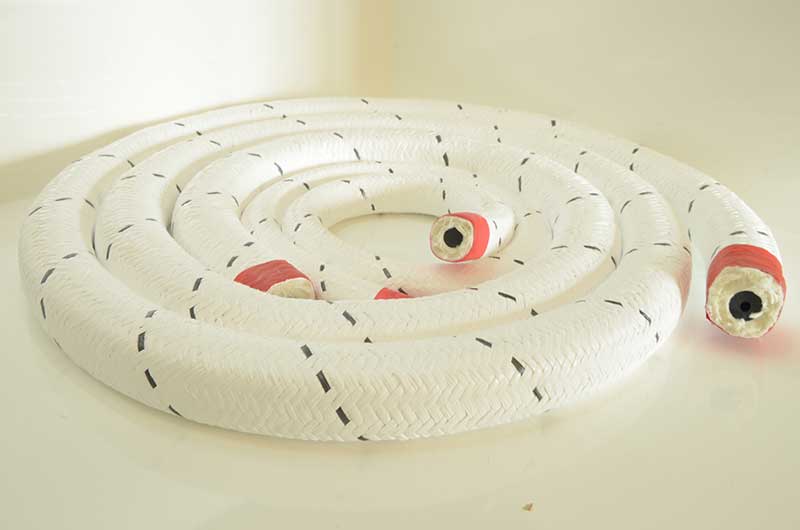

Arcylic Fiber Packing
| Style GH1311 | Working Conditions | |
| Temperature (ºC) | -100—260 | |
| Pressure (Bar) | 100 | |
| Velocity (m/s) | 20 | |
| PH | 1-13 |
Composition: Arcylic Fiber, PTFE
Application: Vessel hatch sealing, the complete packing for tank, crucible and furnace door sealing applications.
Excellent multi-service for a wide variety of uses throughout a plant. Used in pumps and valves, and can handle most chemicals except strong acid, strong alkali and strong oxidizer. Especially for the condition of middle temp. high-pressure, high-speed,and where contamination is not permitted.
Equipment:
An universal packing for valves ,impeller pumps, piston pumps, Reciprocating pumps flange, etc.
Size:3×3mm–50×50mm；Others can be produced according to client’s requirement.
