GH1895–PTFE Packing with Rubber Core
It is most useful in slower shaft speed applications. The rubber core provides a low friction finish and prevents leakage through the braid. Chemical, paper, dye and fertilizer industries. Steam, fuels, water, dilute acids and alkalies, organic compounds, oils, greases and solvents, etc.
- PTFE yarns, silicone rubber core, braided
- Temperature (ºC) 260
- Pressure (Bar) 200
- Velocity (m/s) 22
- PH0-14
- Size: 3×3mm–50×50mm

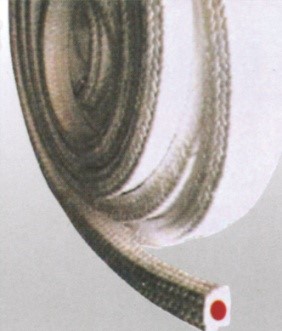

PTFE Packing with Rubber Core
| Style GH1895 | Working Conditions |  |
| Temperature (ºC) | 260 | |
| Pressure (Bar) | 200 | |
| Velocity (m/s) | 22 | |
| PH | 0-14 |
Composition: PTFE yarns, silicone rubber core, braided
Application:
It is most useful in slower shaft speed applications. The rubber core provides a low friction finish and prevents leakage through the braid. Chemical, paper, dye and fertilizer industries. Steam, fuels, water, dilute acids and alkalies, organic compounds, oils, greases and solvents, etc.
Equipment:
High elastic red silicone rubber core can absorb vibration, to control leakage, suitable for worn-out pumps.Centrifugal pump, mixer, agitator, stern tube. Etc.
Size:3×3mm–50×50mm；Others can be produced according to client’s requirement.
