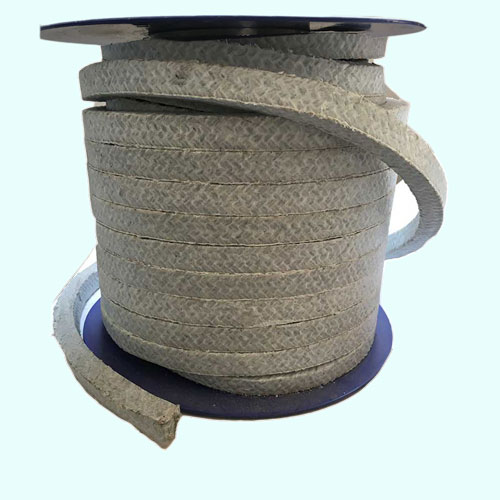

GH4000–Asbetos Packing with PTFE
Long fiber white asbestos impregnated with PTFE. It has anticorrosive and long service properties.
Static and dynamic sealing — Especially suitable for a wide range of applications for large rotary pumps in the medium pressure range.
- Asbestos, PTFE
- Temperature (ºC) -100 – 260
- Pressure (Bar) 100
- Velocity (m/s) 12
- PH2-12
- Size: 3×3mm–50×50mm
| Style GH4000 | Working Conditions | |
| Temperature (ºC) | -100—260 | |
| Pressure (Bar) | 100 | |
| Velocity (m/s) | 12 | |
| PH | 2-12 |
Composition: Asbestos, PTFE
Application:
Long fiber white asbestos impregnated with PTFE. It has anticorrosive and long service properties.
Static and dynamic sealing — Especially suitable for a wide range of applications for large rotary pumps in the medium pressure range.
Size:3×3mm–50×50mm；Others can be produced according to client’s requirement.
