Packing Cutter

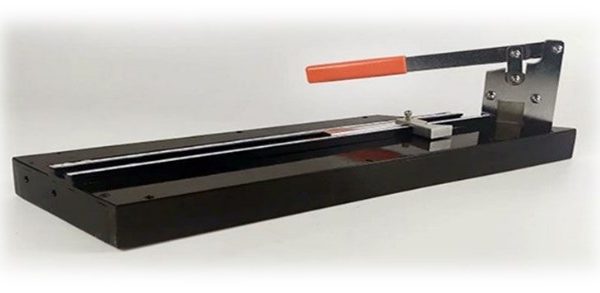

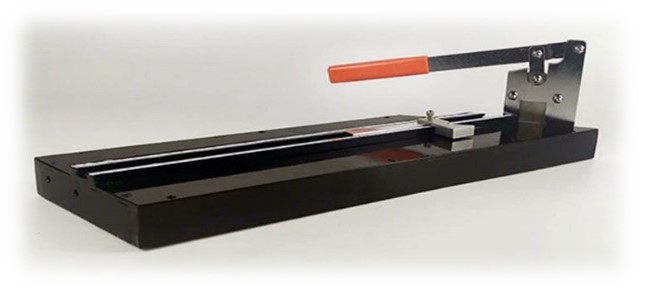

Guillotine Packing Cutter

PACC is the updating design style tools, using the guillotine, but not the knife to cut.
It improves cutting accuracy and efficiency.

Its ruler can precisely cut the required length, and the 45° incision perfectly meets the installation requirements of the compression packing.

Category:



Performance characteristics:

1, special alloy root cutter, can easily cut aramid, carbon fiber, synthetic fiber and other materials;

2, structural design, clear scale scale can cut the disc, reduce cutting error;

3, scientific size conversion design, no cumbersome on-site calculation;

4, the fixture design, can avoid the disc cutting edge loose;

5, easy to carry, economic and practical.

Cutting sequence:

(1) Install the cutting tool on the cutting tool holder and fix it with screws.

(2) Select the packing to be used and determine the required cutting size.

(3) Straight cutting 15° or 45° diagonal cutting.

The scale on the traveling ruler is used to determine the length of the disc, that is, the diameter of the shaft or the diameter of the disc ring. When cutting at 45°, ensure that the disc cannot rotate randomly. When cutting straight, each different cutting point needs to be rotated 180°. No matter what kind of cutting, it should be carefully operated.
